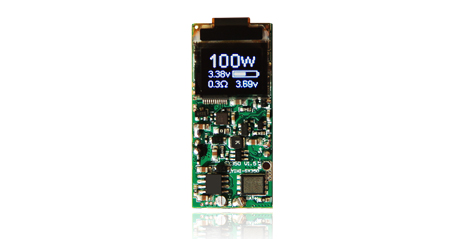

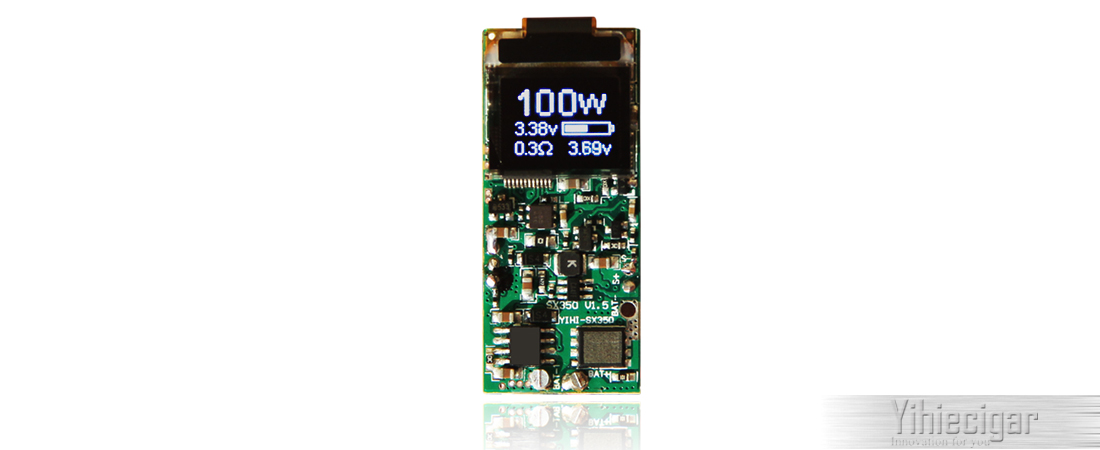

* The 2nd generation vapor intelligent chip
* Upgradable chip
* VW: 10W-100W
* VV: 1.0V-9.5V
* Buck-Boost&Boost
* OLED 0.66" Screen
* The 2nd generation vapor intelligent chip
* Upgradable chip
* VW: 10W-100W
* VV: 1.0V-9.5V
* Buck-Boost&Boost
* OLED 0.66" Screen
Features
* The 2nd generation vapor intelligent chip
* Upgradable chip
* VW: 10W-100W
* VV: 1.0V-9.5V
* Buck-Boost&Boost
* OLED 0.66" Screen
Warning:If you're not skilled, experienced, and comfortable with Electronics,
Soldering, and Safety you should not be purchasing this chip! It is intended
for experienced individuals.
No. | Specs | Minimum | Typical | Max | ||
1 | Output Power (2 Batteries) | 10 Watts | 50 Watts | 100 Watts New | ||
2 | Output Voltage DC-DC Buck-boost& Boost together | 1.0 Volts | 5.0 Vots | 9.5 Volts | ||
3 | Output Current | 1.25A | 12.0A | 40A New | ||
4 | Atomizer Resistance | 0.15 Ohms New | 0.5 Ohms | 3.0 Ohms | ||
5 | Input Voltage (2* 18650 & 7.4V Li-ion ) | 6.2 Volts | 7.4 Volts | 8.5 Volts | ||
6 | Input Current | 1.5 A | 10.0 A | 40A New | ||
7 | Screen On Current | 150 mA | ||||
8 | Quiescent Current | 1 mA | ||||
9 | Power Down Current | 300 uA | ||||
10 | Efficiency | 95% | ||||
11 | Screen size | 0.66" OLED | ||||
12 | Fire Method | One Fire Button | ||||
13 | Adjust Power Method | Both Gravity Sensor (Tilt) and Up&Down Button Available | ||||
14 | USB Charging for Battery | NO | ||||
15 | App controlled Bluetooth | NO | ||||
16 | Software Upgrate/GUI operate | YES (YiHiEcigar SXi Software ) | ||||
17 | Charging for Mobile Phone | N/A | ||||
18 | Customize Logo | YES | ||||
19 | Protection: | 1. Reverse Polarity Protection (required to solder an extra negative wire to the pinout labeled Bat - . Which is just above the Red positive wire on the right side of the board | ||||
2. Output Short Protection | ||||||
3. Low Resistance Protection | ||||||
4. Battery low voltage Protection | ||||||
5. Temperature Overheat Protection |
